This blogpost is about getting a Windows Virtual Desktop (WVD) hostpool registration key. This registration key is needed to register new WVD Session Hosts to your hostpool.

I am using 2 methods to get the key. The portal and via Powershell. The portal is the easy way to get the key. For example, you can use this for testing purposes.

Prerequisites

You already have a Windows Virtual Desktop Hostpool.

Get Registration key out of the portal

Firstly, log on the Azure Portal

Next, go to your WVD hostpool in the portal. For example:

Windows Virtual Desktop Hostpool registration key

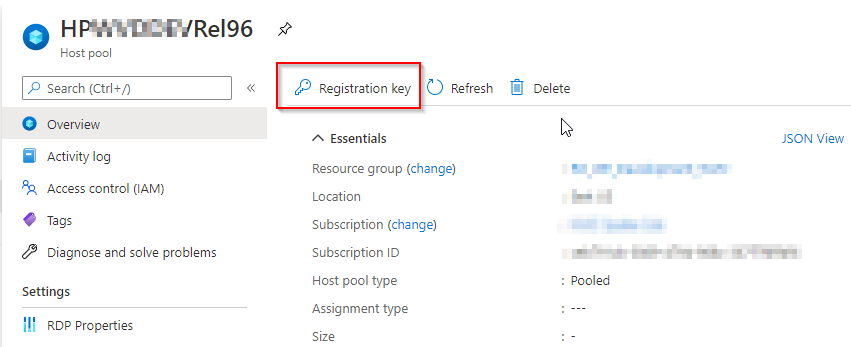

Lastly, when you clicked on the hostpool, you can find the key here:

Registration key button to generate a key

After you click the button, the generate option appears:

Get Registration key via Powershell

And ofcourse, this is my favorite. It is now time to generate the key via Powershell. You can automate this process.

Firstly, install these modules:

$installedPackageProvider = Get-PackageProvider
if ($installedPackageProvider.Name -notmatch "NuGet") {
    Install-PackageProvider -Name NuGet -force
     Write-Host("Install powershell module NuGet")
}
$installedModules = Get-InstalledModule
if ($installedModules.Name -notmatch "Az.Accounts") {
    Install-Module Az.Accounts -Force -AllowClobber
     Write-Host("Install powershell module Az Accounts")
}
if ($installedModules.Name -notmatch "Az.Resources") {
    Install-Module Az.Resources -Force -AllowClobber
     Write-Host("Install powershell module Az Resources")
}
if ($installedModules.Name -notmatch "Az.DesktopVirtualization") {
    Install-Module Az.DesktopVirtualization -Force -AllowClobber
     Write-Host("Install powershell module Az DesktopVirtualization")
}

After that, log on to Microsoft Azure:

Connect-AzAccount

In addition, select the proper subscription if you have multiple:

Select-AzSubscription -SubscriptionId "SUBSCRIPTION ID" | Set-AzContext

Create the token via the following code. This creates a token which is valid for the next 14 days. The maximum life time of a token is 30 days. Use this accordingly

$resourceGroupName = "RESOURCEGROUP NAME OF HOSTPOOL"
$Hostpool = "HOSTPOOL NAME"
$SubsciptionID = "SUBSCRIPTION ID"

$GetToken = New-AzWvdRegistrationInfo -SubscriptionId $SubsciptionID -ResourceGroupName $resourceGroupName -HostPoolName $Hostpool -ExpirationTime (Get-Date).AddDays(14) -ErrorAction SilentlyContinue

A new token is created, this is the output $GetToken:

If you are forwarding this variable to another piece of code make sure that you only forward the token. Use this to forward only the token:

$GetToken.Token

That way you can register new sessionhosts to your hostpool using Powershell:

References

Microsoft Doc about registration key
